Description

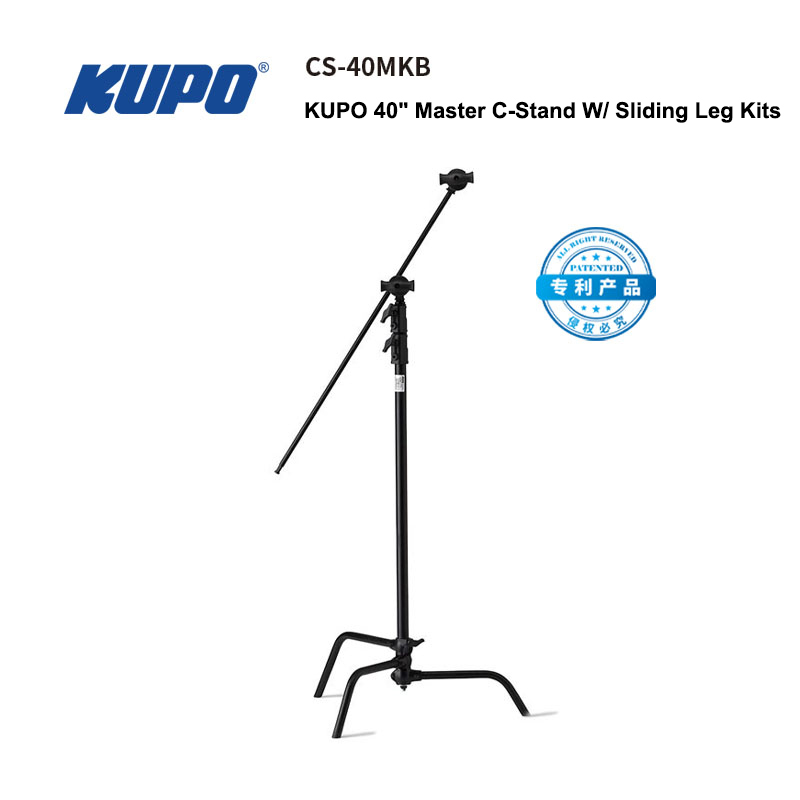

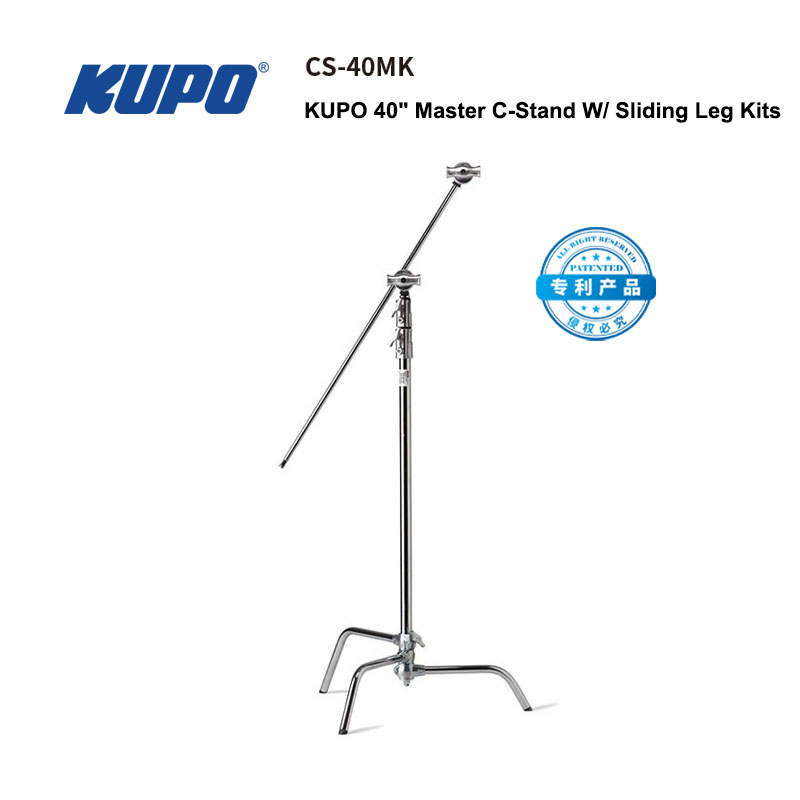

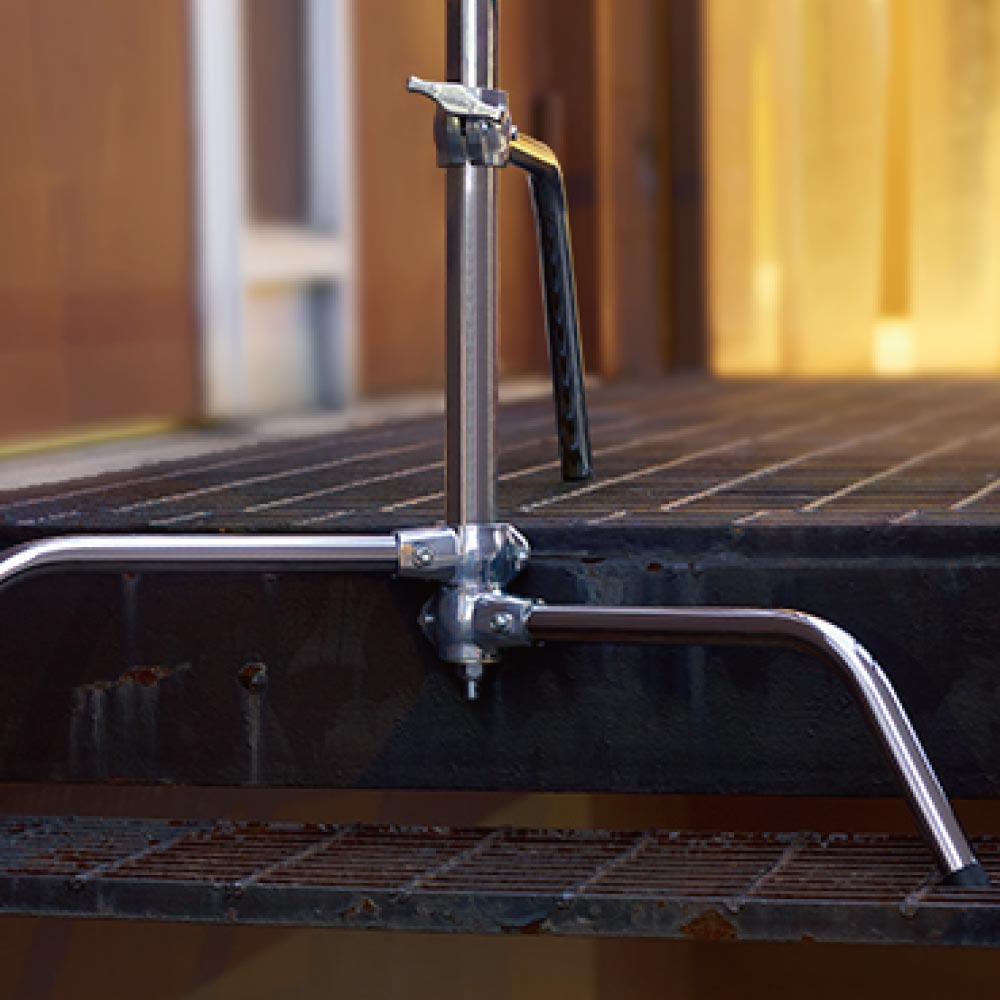

The Kupo master C-stand with sliding leg has two legs that are spring loaded to open in fixed positions while the third leg is height adjustable by loosening a locking knob and sliding it up and down the main riser section. This enables the user to raise one leg higher than the others to level out the stand on an incline or uneven terrain. The kit comes with a 40" C-satnd, a 2.5" grip head and a 40" grip arm. The 40" grip arm with hex stud is a 2-1/2" grip head mounted on the end of a 40" piece of steel tubing 5/8" (16mm) in diameter and finished with a faceted hex stud to keep lighting fixtures in position when they are placed on the end of the arm . The surface of the tubing is painstakingly machined to create a rough texture to ensure a non-slip surface. The 2-1/2" grip head consists of a pair of rotating aluminum discs attached to a 5/8" (16mm) receiver . The discs have four different sized V-shaped jaws to accept any accessory witha 5/8", 1/2", 3/8" or 1/4" mounting stud or tubing. The V-shaped jaws have teeth that grab whatever is mounted between the plates securely. The 2-1/2" grip head features an oversized ergonomic T-handle and dedicated roller bearings designed for maximum torque. Ideal for outdoor productions, conventional studio setups, and LED virtual production (LED volume) environments.
Features
-40" Master C-stand with sliding leg for uneven terrian
-With a 2.5" grip head and a 40" grip arm with a 5/8" hex stud
-The hex stud of grip arm to keep lighting fixtures in position
-Three varied leg heights allowingnest together for storage
-Fitted with captive locking T-knobs on the column

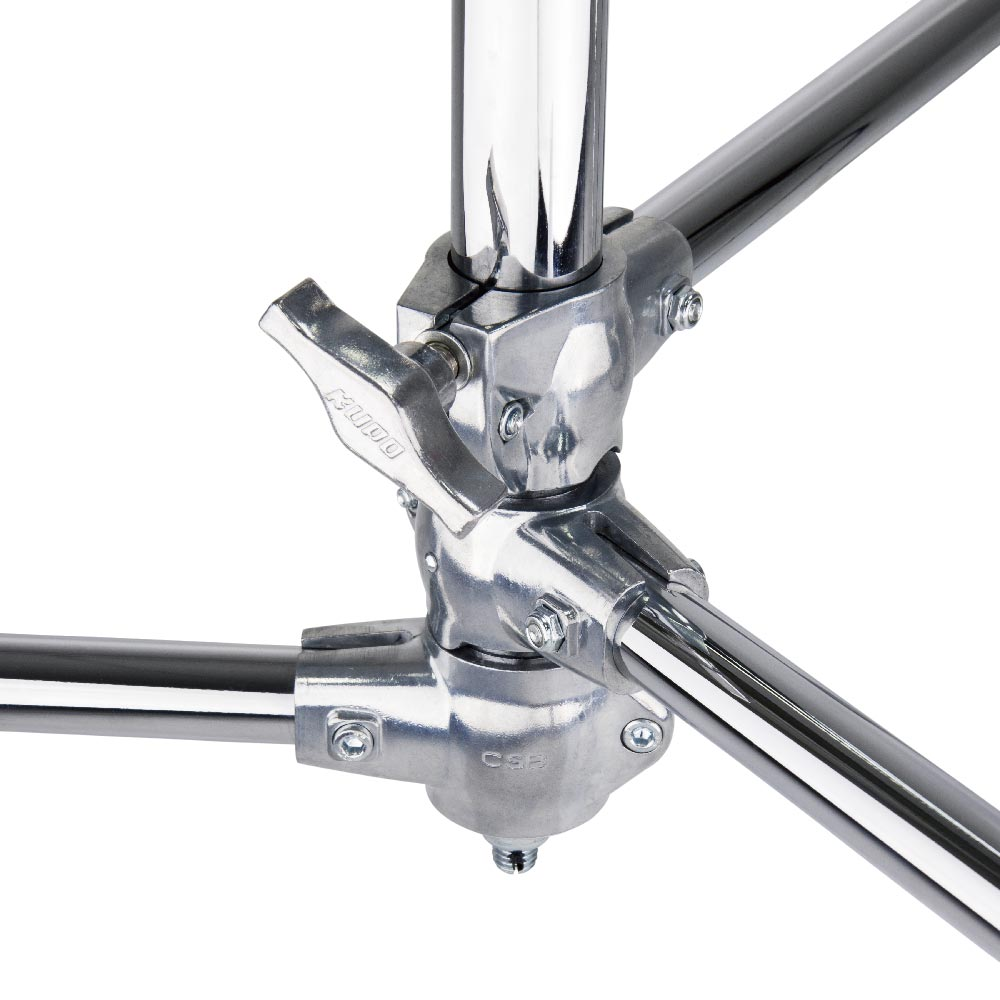

-Zinc Casting Alloy makes the leg base holders solid and sturdy
-Easily attach a grip headand boom for added flexibility
-Steel baby stud welded directly to the top section instead of being pinned
-Fitted with captive locking T-knobs on the column
-A sizeable brake show to ensure a much better lock off.
-Stand leg equipped with foot pad to protect both leg and ground.
-Ideal for outdoor, studio, and LED virtual production environments.
Specification
- 2 Risers, 3 Sections
- Center Column: 35mm, 30mm, 25mm
- Finish: Chrome Plated Steel
- Loading Weight: 10kg (22lbs)
- Weight: 9.19kg (20.26lbs)
- Closed Length: 132cm (51.9")
- Minimum Operating Height: 134cm (52.8")
- Maximum Height: 325cm (127.9")
- Footprint Dia.meter: 95cm (37.4")
- Tube Dia.: 25mm
- Stand Top: Welded 5/8” (16mm) Baby Stud
- Included Extension Grip Arm KCP-241 & Grip Head KCP-200
- Suggested Casters: None
